Pelican carry-on case modified top box

KTMphil

Senior member
Joined
Jan 11, 2011
Location
Chiang Mai, Thailand
Bikes
2007 KTM 990 Adventure Suzuki DRZ 400
I've been trying to come up with the best luggage configuration for this 10,000 km ride to Siberia and the Russian coast. A 4wd truck is going with us, so only minimal gear needs to be carried on the bike. Auluminium side panneirs have lots of disadvantages, the main one being you're too wide to split traffic lanes, so not ideal unless you're carrying lots of gear and need to lock it. We're going to be riding through some areas where nightime security cant be gauranteed for the bikes, so the luggage needs to be removable or lockable. So a bit of thinking was needed to come up with a suitable idea for luggage.


Pelican have been making excellent, bullet proof luggage for years and offer a lifetime guarantee. So ive opted for converting a carry-on Pelican case as a small top box. Not normally a fan of top boxes as they stop you from swinging your leg over the bike but net net, I think this is the best lockable option for carrying a small amount of gear.


Bring on the Pelican 1510 - Wheels and pull handle even (gave me goose bumps at first).


USD $ 160 and bullet proof:

http://www.bhphotovideo.com/c/product/330231-REG/Pelican_1510_000_110_1510_Carry_On_Case.html



Below gives an idea of the size:










Now to modify.




....


KTMphil

Senior member
Joined
Jan 11, 2011
Location
Chiang Mai, Thailand
Bikes
2007 KTM 990 Adventure Suzuki DRZ 400
If you have a rear rack with the keyhole shaped cut outs, the "hockey puck" and catch arrangement work fantastically well for attaching a case to the rear rack. Ideally you will need 4x of these. I got some fabricated in Chiang Mai for 950 Bht each (not cheap but good quality)


P_20150713_173623.jpg by Triangle Golden 007, on Flickr




First job was to see if the hole attachments would fit either side of the pull handle slide, luckily they just did


P_20150713_164745 by Triangle Golden 007, on Flickr




Then get it all marked up and careful thought so that all the catches could get through the holes in the rear rack


P_20150713_165007 by Triangle Golden 007, on Flickr





Measure twice cut once


P_20150713_165832 by Triangle Golden 007, on Flickr




Crossed finders that everything would line up and the box would slot through the rack. Ideally rubber o rings should go under the washers to make the box waterproof once again


P_20150713_170503 by Triangle Golden 007, on Flickr





Stainless end locknuts to stop anything coming loose and cover the sharp ends of the bolts



P_20150713_170909 by Triangle Golden 007, on Flickr





Not looking too bad


P_20150713_172502 by Triangle Golden 007, on Flickr





Catch levers on the underside of the rack, being sucked on tight by the hockey pucks on the inside of the case


P_20150713_172514 by Triangle Golden 007, on Flickr





Looking into the inside of the case with the hockey pucks screwed down tight


P_20150713_172537 by Triangle Golden 007, on Flickr




The finished product


P_20150713_172555 by Triangle Golden 007, on Flickr




Wheels an' all (scary)


P_20150713_172629 by Triangle Golden 007, on Flickr




Retractable pull handle


P_20150713_172647 by Triangle Golden 007, on Flickr





Doesnt look too bad for the convience


P_20150713_172707 by Triangle Golden 007, on Flickr





P_20150713_172907 by Triangle Golden 007, on Flickr


TB-Racing

Senior Member
Joined
May 6, 2013
Location
Red China
Bikes
various
Got a set of PELICAN Panniers by Caribou with SW-Motech luggage racks for the MTS a few years ago but never fitted once = http://cariboucases.com and the website might give you some additional mounting ideas if needed. The PELICAN pannier and boxes are great solid reliable quality, using roller Pelican as tool and parts boxes (wheel versions similar to the one in your post) for many years without any dramas.


Don't forget to test fit them pizza cartons with the new top box (hate the top boxes and they do look ridiculous) ....


Attachments

KTMphil

Senior member
Joined
Jan 11, 2011
Location
Chiang Mai, Thailand
Bikes
2007 KTM 990 Adventure Suzuki DRZ 400
I once promised myself i'd NEVER do this. Still can only look at it out of the corners of me eyes, but i think once on the road will be glad of this setup.


brake034

Senior Member
Joined
Feb 1, 2013
Location
N/A
Bikes
Suzuki GD110HU, BMW F650GS
Phil, will you leave it on the bike overnight?


brake034

Senior Member
Joined
Feb 1, 2013
Location
N/A
Bikes
Suzuki GD110HU, BMW F650GS
So why did you go for the case with the wheels and the handle?


KTMphil

Senior member
Joined
Jan 11, 2011
Location
Chiang Mai, Thailand
Bikes
2007 KTM 990 Adventure Suzuki DRZ 400
Travelling in Japan while the bike is being shipped back to Thailand

Sent from my ASUS_Z00AD using Tapatalk


prince666

Senior Member
Joined
Jul 3, 2013
Location
Shandong (China)
Bikes
CF 250 Jetlux. CFmoto 650 MT Honda CRF 1000 DCT Yamaha 125 YBR KG
Travelling in Japan while the bike is being shipped back to Thailand

Sent from my ASUS_Z00AD using Tapatalk

Wont people think you are a cheap stake wheeling your box with 4 holes in the side.......

It looks great and i see you are doing the ride on the best bike for the job IMO F800 GS

bullet proof luggage for years and offer a lifetime guarantee
Think that maybe void now :cruiser:

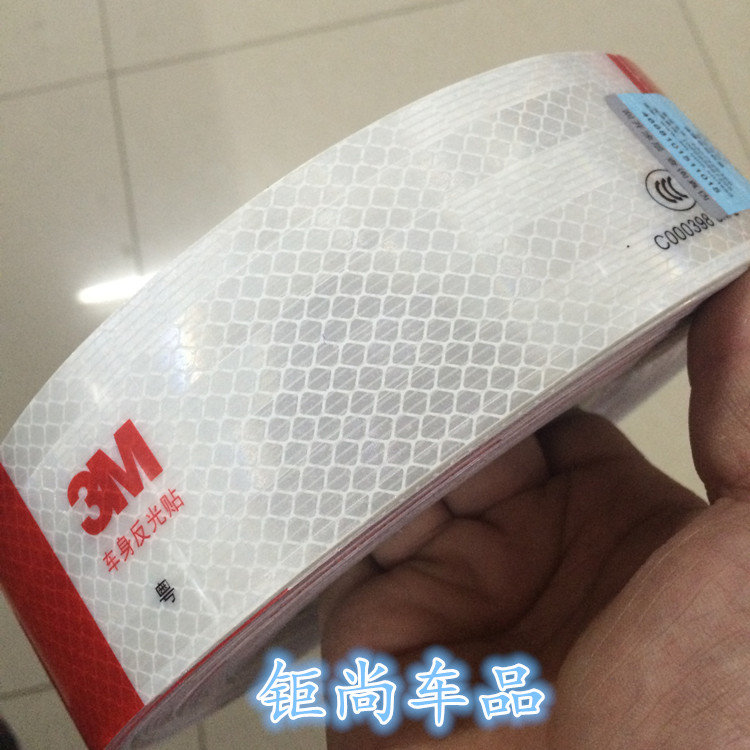

Just need a few 3 M reflective stickers all good to go could need shit like this in China Phil

3m strip.jpg

see and be seen ?????



hainan&thailand& china 2014 2015 148.jpg


Pounce

Senior Member
Joined
Jan 23, 2011
Location
Perth
Bikes
'12 KTM 690R & '09 KTM 450EXC
Looks good but I'd swap out those dome nuts for nyloc ones, & maybe a piece of 4mm ally plate cut to fit the inside profile of the base to give a more even clamp pressure over the whole area.
Rough roads look to be in your future & the less to shake loose & rattle about the better


BobS

Senior Member
Joined
Jan 20, 2011
Phil - how good is the latch that holds the pull handle in place? That would certainly make a wider profile if it slides out.


KTMphil

Senior member
Joined
Jan 11, 2011
Location
Chiang Mai, Thailand
Bikes
2007 KTM 990 Adventure Suzuki DRZ 400
There's so much compression load and the added spring washer effect from the plastic case that I think its ok.

Sent from my ASUS_Z00AD using Tapatalk


bill

Senior Member
Joined
Apr 27, 2011
Location
Cambodia
Bikes
KTM 500 XCW
Phil
I'm guessing somewhere secure and waterproof for photography gear was a priority ?
