KTMphil
Senior member

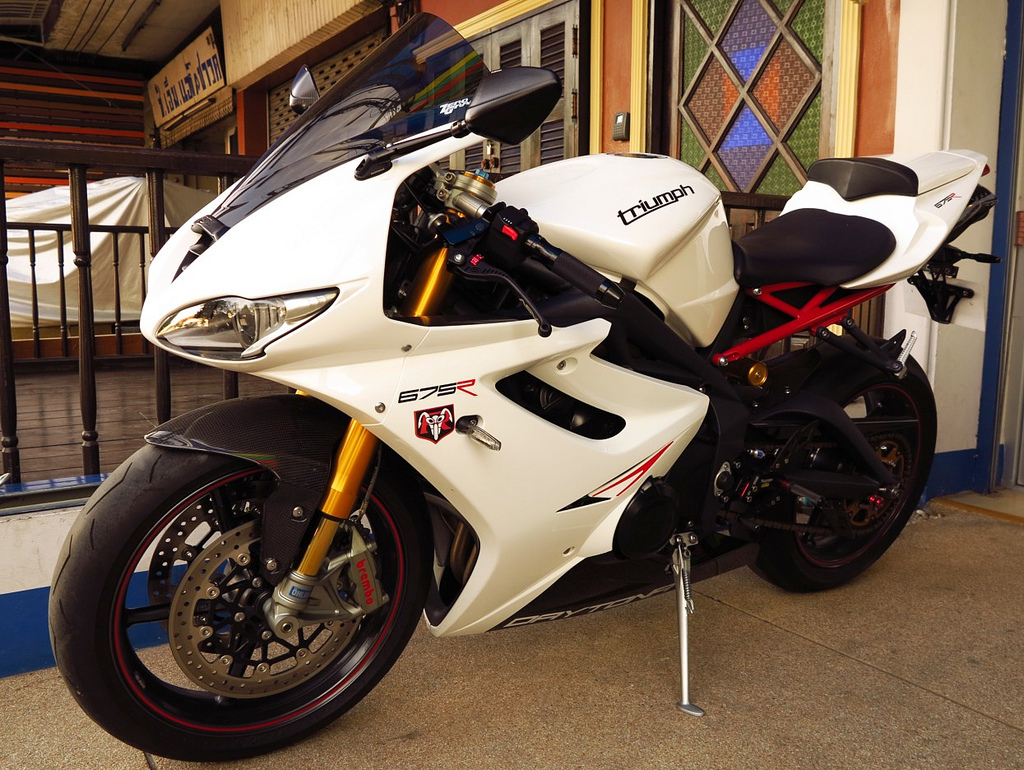

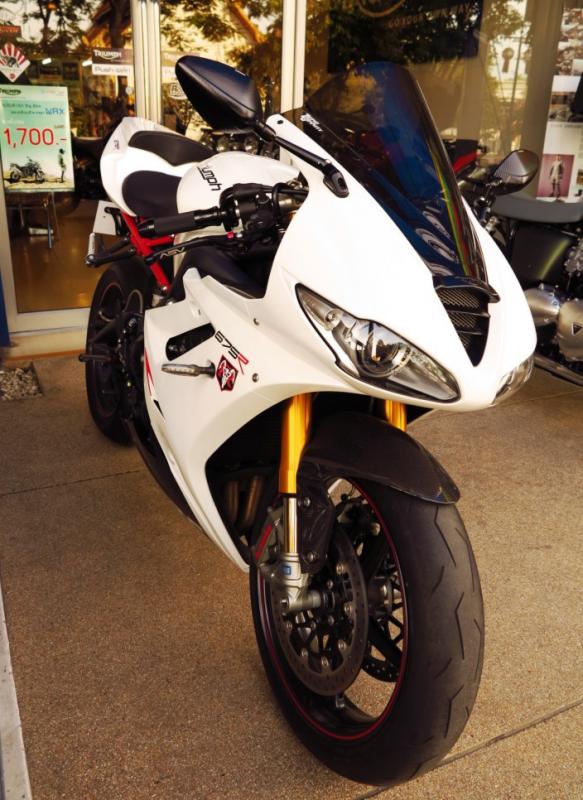

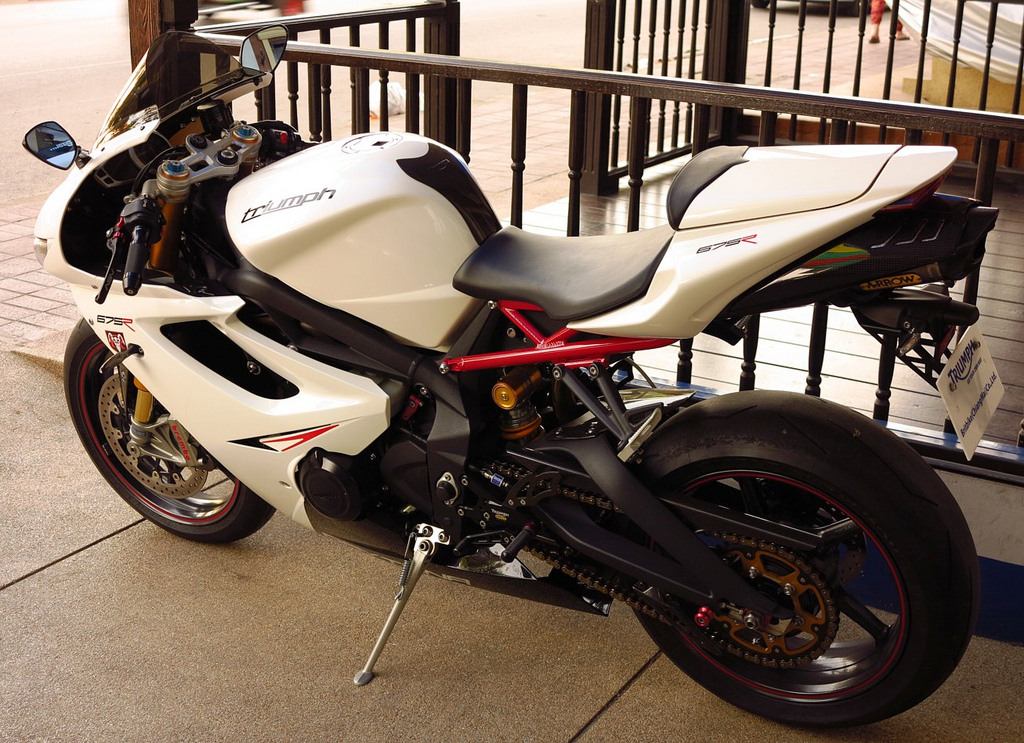

Britbike (Chiangmai) Co. Ltd currently has one in stock, gorgeous machine with a price to match - 870,000 Bht

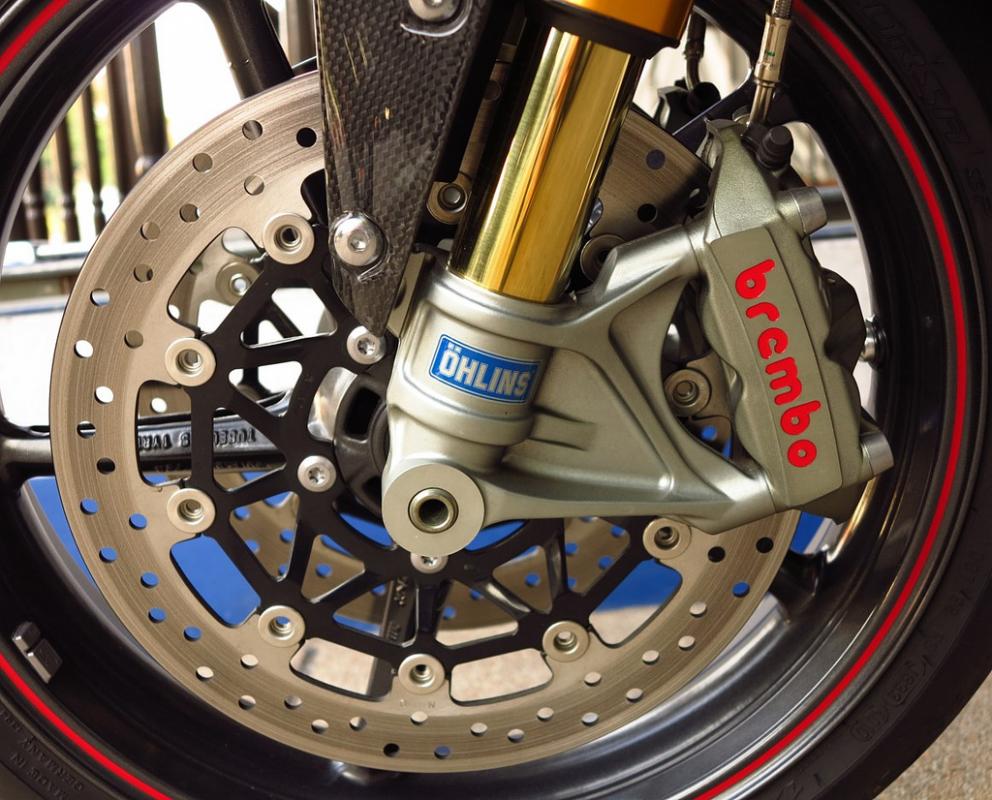

Enormous dual, radial piston, Brembo front brakes

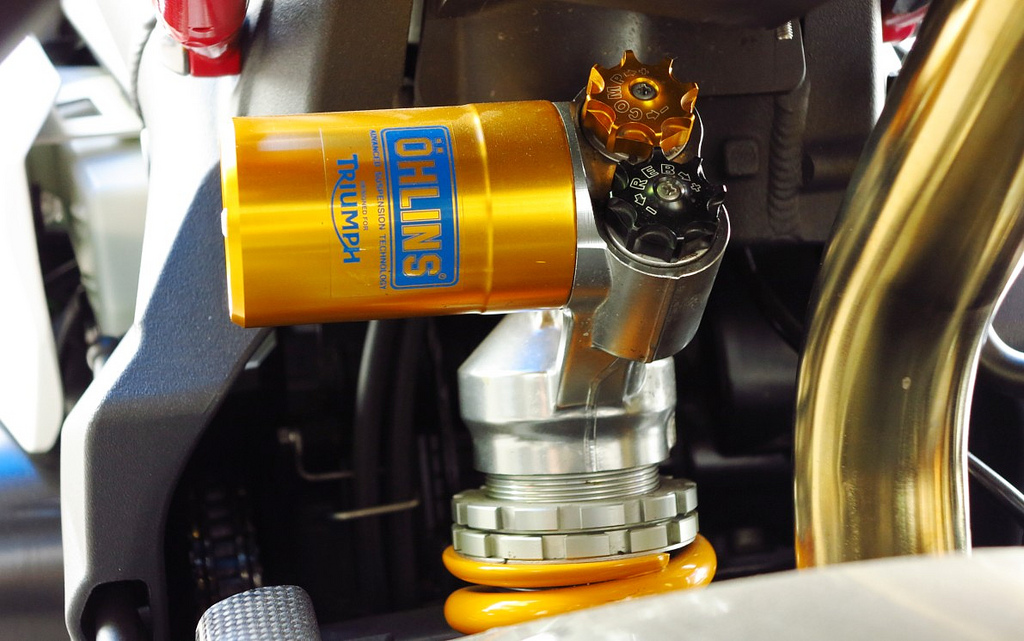

Race spec. rear shock

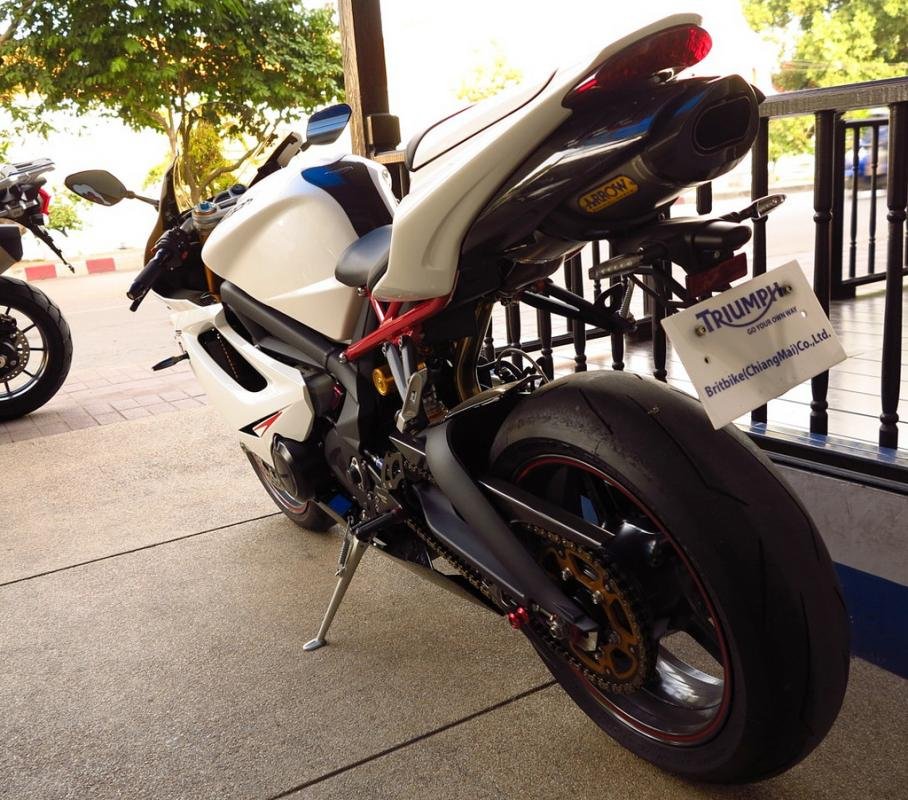

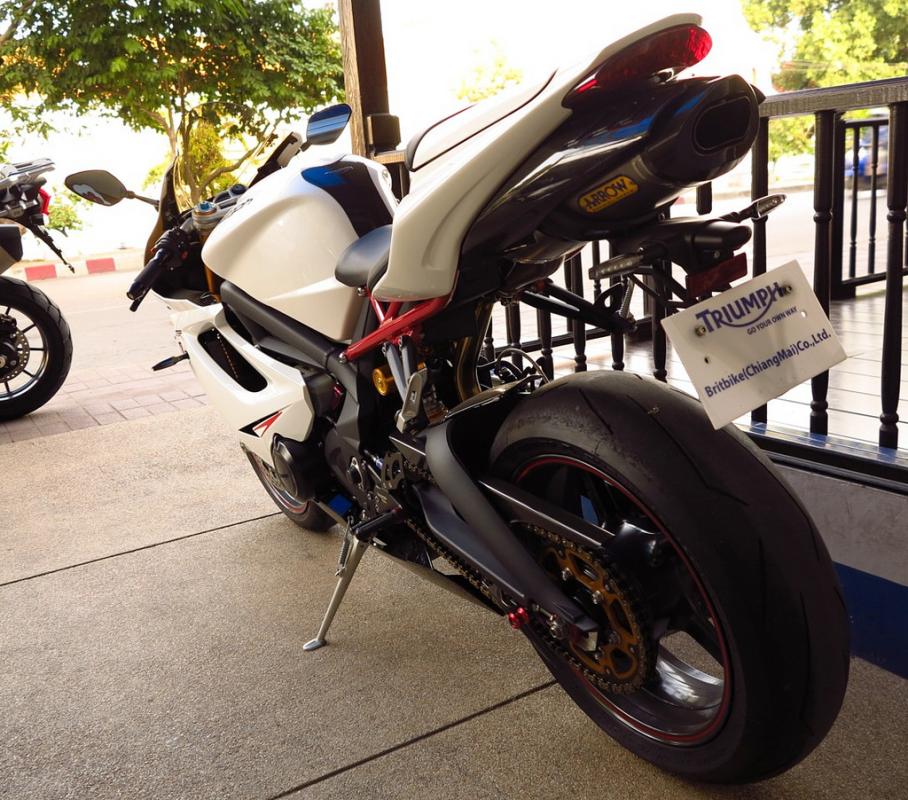

Arrow single exhaust
A very sexy machine, 125HP out of the box, why go any bigger and heavier than this?
Enormous dual, radial piston, Brembo front brakes
Race spec. rear shock
Arrow single exhaust
A very sexy machine, 125HP out of the box, why go any bigger and heavier than this?
| Engine and transmission | |
|---|---|
| Displacement: | 675.00 ccm (41.19 cubic inches) |
| Engine type: | In-line three, four-stroke |
| Power: | 125.00 HP (91.2 kW)) @ 12600 RPM |
| Torque: | 72.00 Nm (7.3 kgf-m or 53.1 ft.lbs) @ 11700 RPM |
| Compression: | 12.7:1 |
| Bore x stroke: | 74.0 x 74.0 mm (2.9 x 2.9 inches) |
| Fuel system: | Injection. Multipoint sequential electronic fuel injection with forced air induction and SAI |
| Fuel control: | DOHC |
| Ignition: | Digital-inductive type via engine management system |
| Cooling system: | Liquid |
| Gearbox: | 6-speed |
| Transmission type, final drive: | Chain |
| Clutch: | Wet. multi-plate |
| Driveline: | O ring chain |
| Fuel consumption: | 5.11 litres/100 km (19.6 km/l or 46.03 mpg) |
| Greenhouse gases: | 118.6 CO[SUB]2[/SUB] g/km. (CO2 - Carbon dioxide emission) |
| Exhaust system: | Stainless steel 3 into 1 system with valve in secondary and under seat exhaust |
| Chassis, suspension, brakes and wheels | |
| Frame type: | Aluminum beam twin spar. |
| Rake (fork angle): | 23.9° |
| Trail: | 89 mm (3.5 inches) |
| Front suspension: | Öhlins 43mm upside down NIX30 forks with adjustable preload, rebound and compression damping, 110mm travel |
| Rear suspension: | Öhlins TTX36 twin tube monoshock with piggy back reservoir, adjustable preload, rebound and compression damping, 130mm rear wheel travel |
| Front tyre dimensions: | 120/70-ZR17 |
| Rear tyre dimensions: | 180/55-ZR17 |
| Front brakes: | Double disc. Brembo 4-piston radial mono-block calipers |
| Front brakes diameter: | 308 mm (12.1 inches) |
| Rear brakes: | Single disc. Nissin single piston caliper |
| Rear brakes diameter: | 220 mm (8.7 inches) |
| Physical measures and capacities | |
| Weight incl. oil, gas, etc: | 185.0 kg (407.9 pounds) |
| Seat height: | 830 mm (32.7 inches) If adjustable, lowest setting. |
| Overall height: | 1,105 mm (43.5 inches) |
| Overall length: | 2,020 mm (79.5 inches) |
| Overall width: | 710 mm (28.0 inches) |
| Wheelbase: | 1,395 mm (54.9 inches) |
| Fuel capacity: | 17.40 litres (4.60 gallons) |
| Oil capacity: | 3.50 litres (0.23 quarts) |
