How to bypass/disconnect Kickstand Kill

KMA

Senior Member
Joined
Apr 24, 2011
Location
Chiang Rai
Bikes
05 KTM 250 excf, 96 XR250

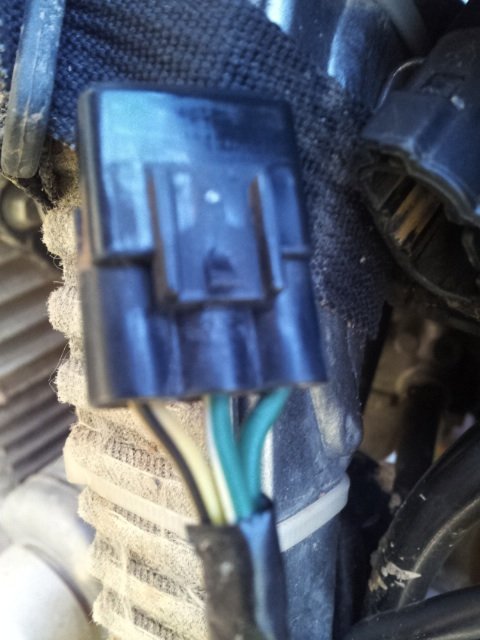

Someone know which wires to cut and or join to bypass the kill switch? plug.jpg
Is a 1998 XR250L

Without a diagram I would insert a multimeter behind the connector, into two of the wires. Set the multimeter to (lets say 200K)Ohms. Operate the kickstand until you see an open/close circuit displayed by a 1 or 0.00 on the multimeter. Trial and error until you find the correct two wire combination.
thats if its a simple NO/NC circuit operated by a switch on the kickstand somewhere (probably)

It was a magnetic switch on my Super Enduro. I just taped the magnet to the switch and then taped it all out of the way

As far as I remember connect the two green wires, but better check with a voltmeter. I didn't do it, I just tried connecting them until it worked.
